Printable templates

Lab Notebook Templates

Name: Lab Notebook Templates
Brand: ElectronicsInfoline
Price: 99.00 INR
Availability: InStock

Five printable sheets for keeping a proper record at the bench, each blank and filled in for a real project. A4 and US Letter, and they print well in black and white.

5 templates and 5 filled examples, A4 and US Letter (13 PDFs) · ZIP of print-ready PDFs: one folder for A4, one for US Letter, and a start-here page

$2.99

Price in US dollars. One-time payment, no subscription.

Name on the invoice (optional)Email for the invoice (optional)

You pay on PayPal with your PayPal account or a card, then come straight back here for the download link.

Digital download, for your own use. See the refund policy.

Instant download after payment.
The link works for 7 days and 5 downloads. Save the ZIP file somewhere safe.
Unzip it, open the folder for your paper size and print at 100 % (“actual size”). The breadboard sheet has a 50 mm bar: measure it to check the scale.

Preview

The previews carry a "Preview" watermark. The PDFs you download have none.

Free sample page

The blank circuit build log, A4, exactly as it comes in the pack. Print it and use it.

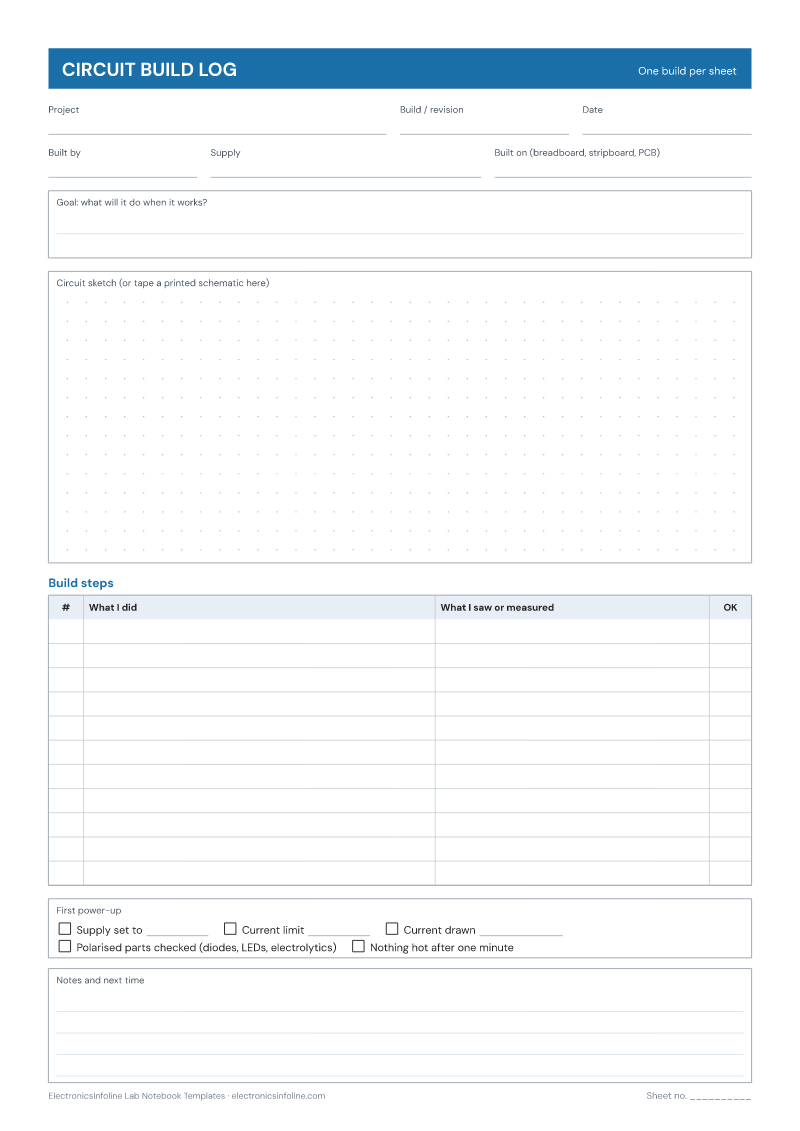

The blank circuit build log sheet: project fields, a goal box, a dot-grid sketch area, a build steps table and a first power-up checklist

Download the sample page (PDF)

What’s inside

Circuit build log

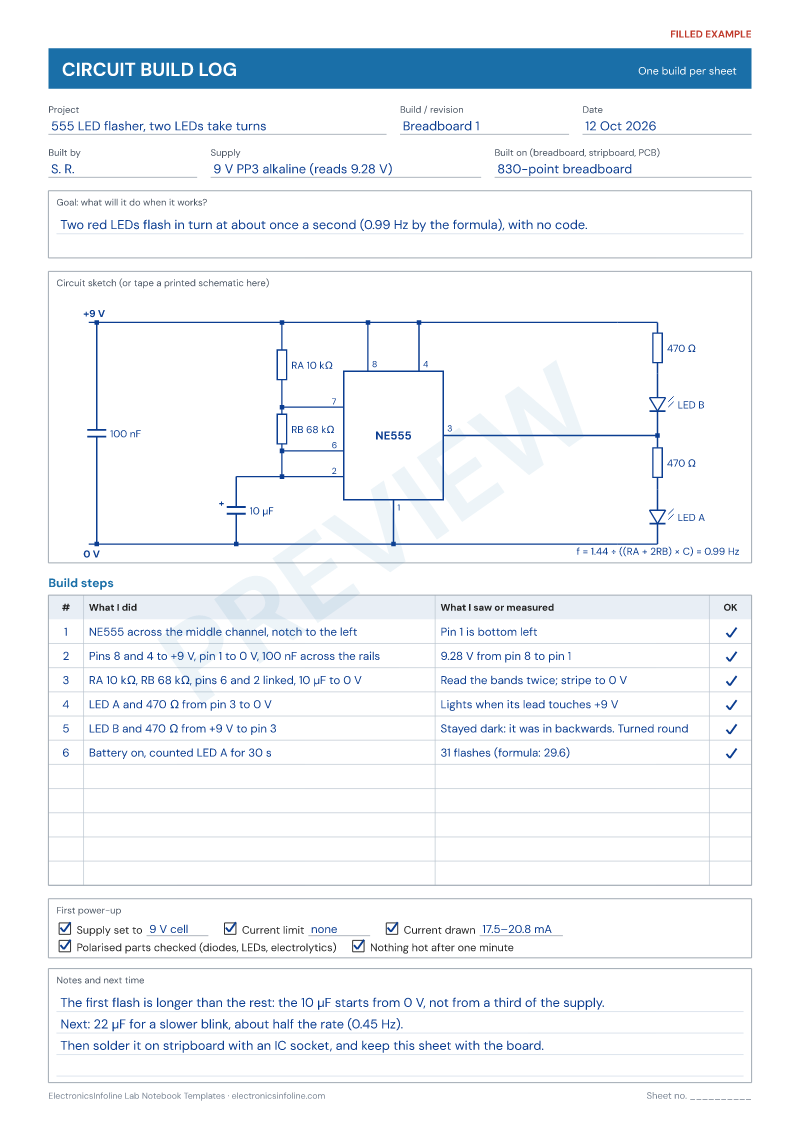

Goal, a dot-grid sketch area, the build steps in order with what you saw at each one, and a first power-up checklist.
Test and measurement record
Instrument, range and setup, then each test point with its expected value, the reading, the unit and a pass or fail.
BOM and cost worksheet

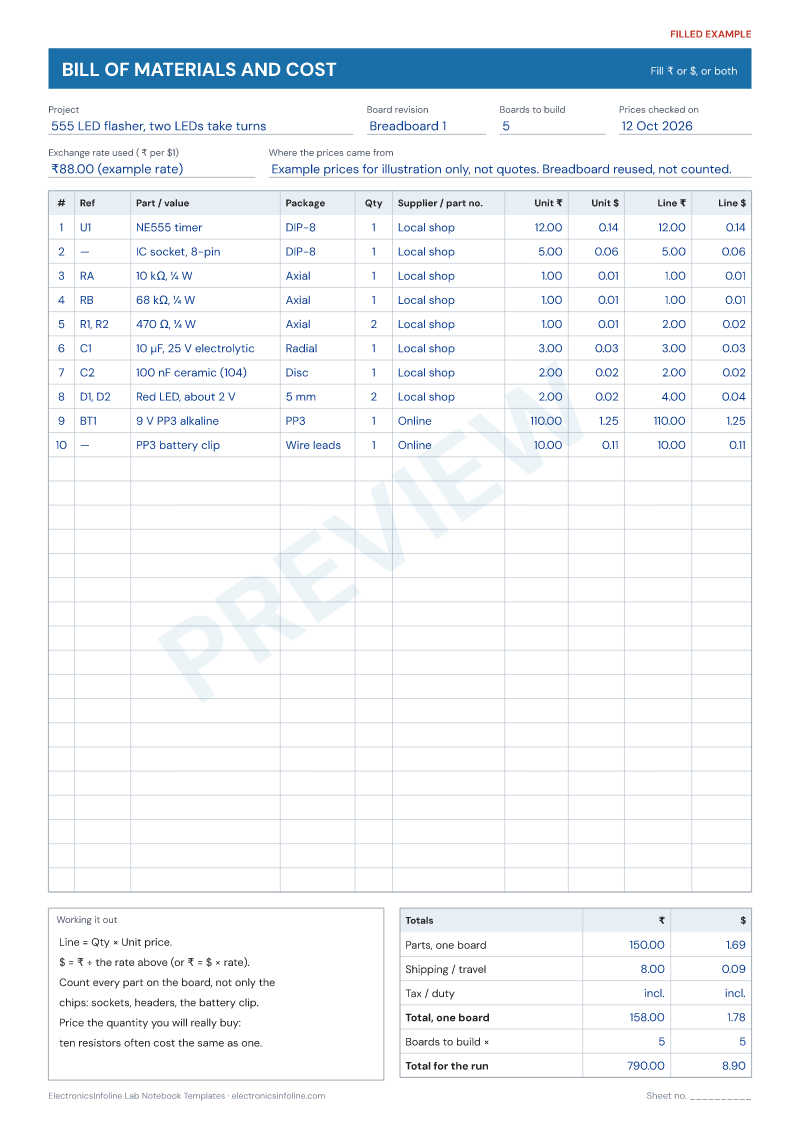

Reference, part, package, quantity and supplier, with unit and line costs in both ₹ and $, the exchange rate you used, and totals per board and per run.
Troubleshooting flow sheet
Six checks in order, from looking and smelling to changing one thing at a time, then a table of suspects to rule in or out.
Breadboard layout grid
Two standard 830-point breadboards drawn at full size on the 2.54 mm grid, to plan the wiring before you push in a part.
Filled examples
All five sheets filled in for our 555 LED flasher, with the expected values worked out from the same formulas as the 555 timer calculator.

Who it is for

Students who must keep a lab record, hobbyists who want to remember next month why a build works, and anyone who has lost an evening to a fault they had already found once. Teachers can hand the blank sheets out as a lab format.

Everything in the pack is also free on the site, spread across these pages. The pack puts it on paper in one place:

Tips and tricks

Write the expected value before you measure. If you write it after, you will talk yourself into whatever the meter shows.
Record the number, not the verdict. “7.6 V” still means something next month; “OK” does not.
Give every change its own row in the build log. Two changes at once and you will not know which one fixed it.
Note the meter range with the reading. The 200 mA range drops more voltage than the 10 A range, and that can change what the circuit does.
Print the breadboard sheet and lay the real parts on it before you start. A layout that crowds the chip shows up on paper first.
Write the exchange rate on the BOM the day you price it. Rates move, and a dollar column with no rate is useless in six months.

What we would do

Start with the build log and the test record; those two answer most of the questions you will have about a project later. Print a dozen of each, punch them and keep them in one file per project. Add the troubleshooting sheet the first time something refuses to work, and fill it in as you go, not afterwards.
