EIL Store
PDFs to print and keep at the bench: A4 reference pages and wall posters. They use the same checked data as our calculators and part pages, laid out for paper.
Pay in rupees through Razorpay (GST included) or in US dollars through PayPal. You pay once, and the download link appears as soon as the payment is confirmed.

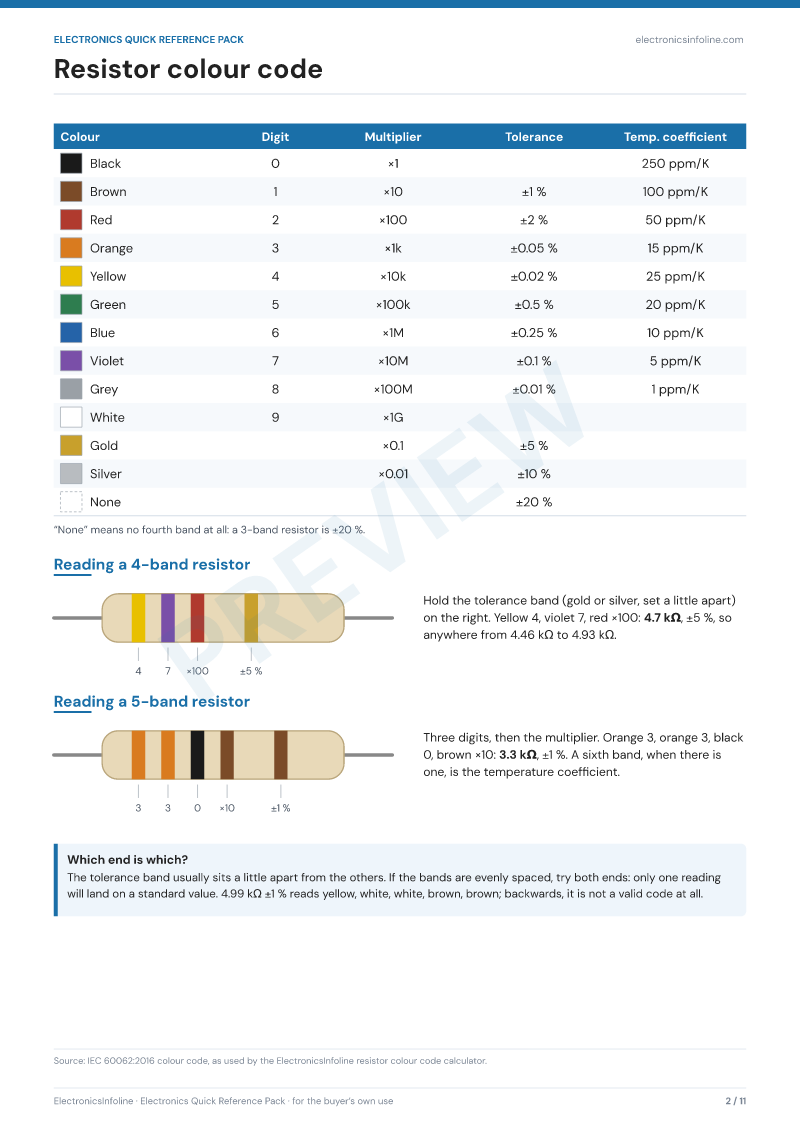

Twelve A4 pages (a cover and eleven numbered pages) of the tables and pinouts you look up most often, laid out to print and pin above the bench. Every value comes from the same checked data as our calculators and part pages.
Edition 1.2, 12 pages, A4 · A4 PDF, colour, prints well in greyscale

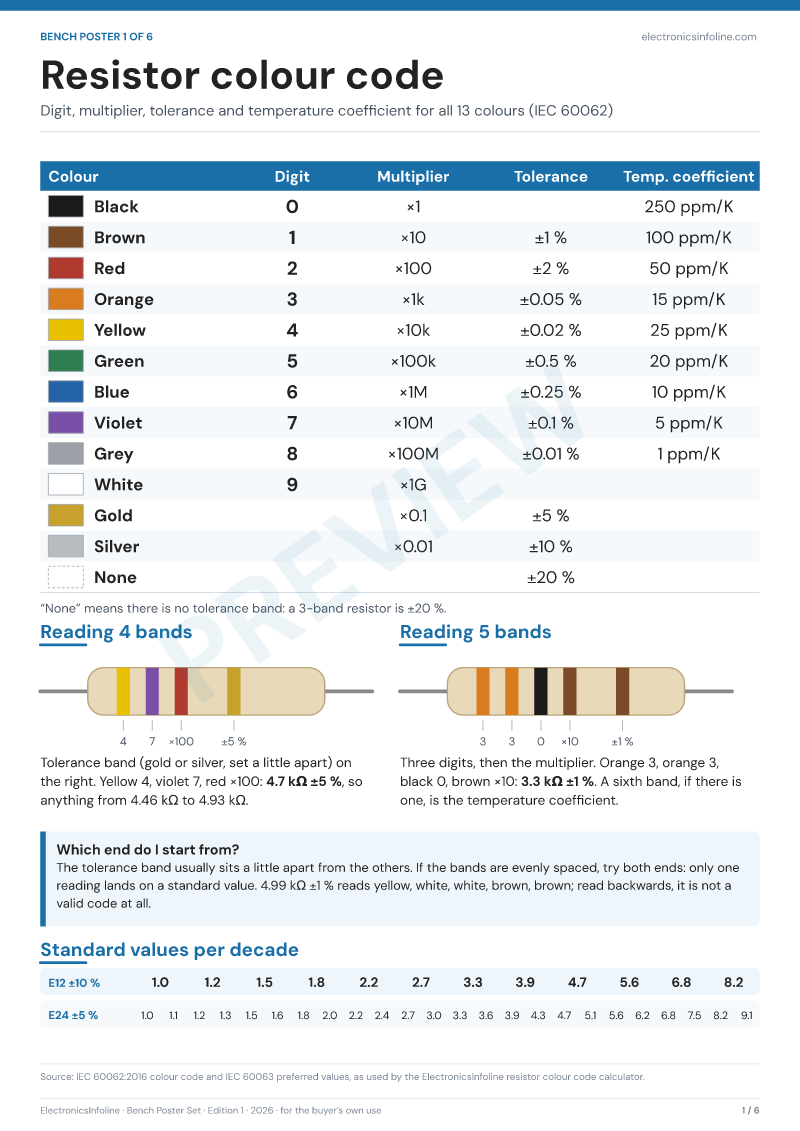

Six posters for the wall above the bench, each in A3, A2 and US tabloid. The values come from the same checked data as our calculators and part pages, and each pinout names its datasheet page.
6 posters, each in 3 paper sizes (18 PDFs), plus a cover sheet · ZIP of print-ready PDFs: A3, A2 and US tabloid (11 × 17 in)
Printable labels for the bins and drawers on your bench. Edition 1.2 keeps the 7 resistor, capacitor and blank sets and adds 8 sets for 88 common transistors and ICs. A transistor or IC label has the part number in large type, the type and key ratings under it, and the package and pin order on the last line. Every set comes in 6 sheet layouts.
15 label sets in 6 sheet layouts (92 PDFs, with a cover sheet) · ZIP of print-ready PDFs: a cover page, a 2-page start-here guide, then A4 sticker sheets (3 × 8 and 4 × 10), US Letter Avery 5160 and 5167, plain A4 and Letter
A hundred DC circuit problems that climb from Ohm’s law to Thevenin and Norton, each with its circuit drawn and a full worked solution. We checked every printed answer against our own independent solution of the same circuit.
Edition 2.0, 73 pages (cover plus 72), in A4 and US Letter, with an answer key, formula card and worksheet · ZIP with the workbook in A4 and in US Letter, plus a 3-page answer key, a 1-page formula card and a 2-page worksheet in both sizes; prints well in greyscale
A hundred AC circuit problems that climb from sine waves and phasors to power-factor correction, resonance, filters and three-phase. Almost every problem has its circuit, waveform or phasor diagram drawn, and each has a full worked solution.
Edition 1.0, 76 pages (cover plus 75), in A4 and US Letter (2 PDFs) · ZIP with two PDFs of the same pages: one for A4, one for US Letter; prints well in greyscale
Every formula behind our lessons and calculators, 172 of them, in one printable book: Ohm’s law, filters, transistors, the 555, op-amps, transformers, wire sizes and more. Each comes with its symbols and units, a worked example and the lesson it is from. Where 230 V and 120 V mains differ, the example is worked for both.
Edition 2.0, 58 pages (cover plus 57), in A4 and US Letter, with a 2-page quick formula card · ZIP with the handbook in A4 and in US Letter, plus a 2-page quick formula card in both sizes; prints well in greyscale
Eight printable sheets for keeping a proper record at the bench: project cover, build log, design calculations, test record, scope record, a BOM with ₹ and $ columns, a troubleshooting flow and a full-size breadboard grid. Each comes blank and filled in for one real project, our 555 LED flasher. A4 and US Letter, and they print well in black and white.
Edition 2.0: 8 blank sheets and 8 filled examples, plus a cover and a start-here page, in A4 and US Letter (23 PDFs) · ZIP of print-ready PDFs: one folder for A4 and one for US Letter, each with the cover, a start-here page, the eight blank sheets and the filled examples
Every printable we sell for the bench, in one ZIP: the reference pack, the posters, the drawer labels, the formula handbook, the lab notebook sheets and the ESP32 & Arduino reference. Cheaper than buying the six on their own.
6 products in one ZIP · One ZIP with a folder for each product, the same files each one sells on its own
Pinouts, boot pins, electrical limits, level shifting, module wiring and code for the ESP32-DevKitC V4 and the Arduino UNO, Nano and Mega, in 22 pages. Every figure is traced to the maker’s datasheet and cited on the page.
Edition 1.3, 22 pages, in A4 and US Letter (2 PDFs) · ZIP with two PDFs of the same 22 pages: one for A4, one for US Letter
Questions about an order? Write to [email protected]. Refunds follow our refund policy.
