What paper sizes are the posters?

Each poster comes in A3 (297 × 420 mm), A2 (420 × 594 mm) and US tabloid (11 × 17 in). The PDFs are vector files, so they print sharp at every size.

One ZIP file with 18 PDFs in three folders, one per paper size. Each PDF holds one poster on one page, so you can send a print shop only the posters you want.

Can I print them at home?

A3 needs a printer that takes A3 paper, and many office printers do. In the US, the tabloid files print on 11 × 17 paper. A2 is a print-shop job.

Is this information free on the site?

Yes. Every table and pinout is on our calculators and part pages. The posters put it all on the wall, large enough to read without getting up.

Can I print copies for a classroom or lab?

The set is for your own bench. For a classroom or lab, write to contact@electronicsinfoline.com; an institute licence is planned.

Print-ready posters

Bench Poster Set

Name: Bench Poster Set
Brand: ElectronicsInfoline
Price: 199.00 INR
Availability: InStock

Six posters for the wall above the bench, each in A3, A2 and US tabloid. The values come from the same checked data as our calculators and part pages, and each pinout names its datasheet page.

6 posters, each in 3 paper sizes (18 PDFs) · ZIP of print-ready PDFs: A3, A2 and US tabloid (11 × 17 in)

$6.99

Price in US dollars. One-time payment, no subscription.

Name on the invoice (optional)Email for the invoice (optional)

You pay on PayPal with your PayPal account or a card, then come straight back here for the download link.

Digital download, for your own use. See the refund policy.

Instant download after payment.
The link works for 7 days and 5 downloads. Save the ZIP file somewhere safe.
Unzip it first. Print one size folder at 100 % (“actual size”): A3 on a home or office printer, A2 at a print shop, tabloid on US 11 × 17 paper.

Preview

The previews carry a "Preview" watermark. The PDFs you download have none, and they are vector files, so the text stays sharp at A2.

What’s inside

Resistor colour code
All 13 colours (IEC 60062) with digit, multiplier, tolerance and temperature coefficient, 4-band and 5-band readings, and the E12 and E24 values.
SMD resistor codes
Three-digit, four-digit and R markings, the full EIA-96 table of 96 values with its multiplier letters, and decoded examples.
Capacitor codes
The three-digit code in pF, nF and µF, tolerance letters, voltage codes, the EIA-198 SMD letters and a worked film-capacitor marking.

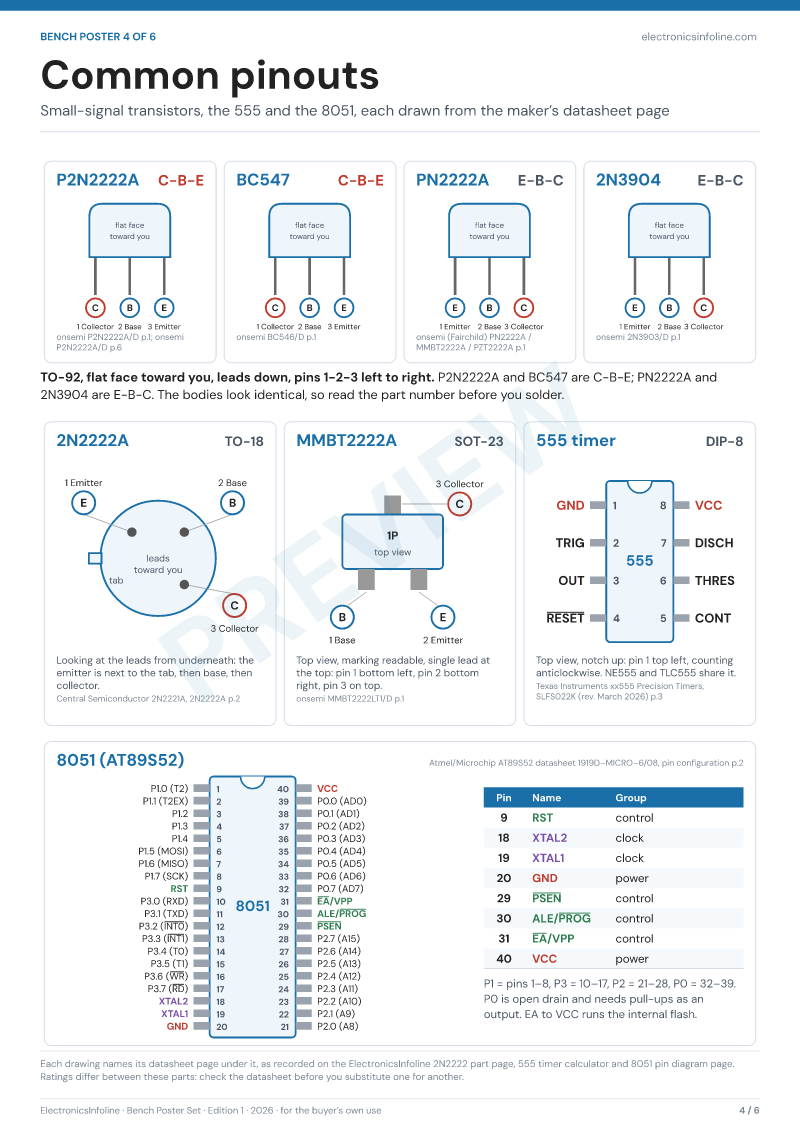

Common pinouts
P2N2222A, PN2222A, BC547 and 2N3904 in TO-92, the 2N2222A in TO-18, the MMBT2222A in SOT-23, the 555 and the 8051, each with its datasheet page.

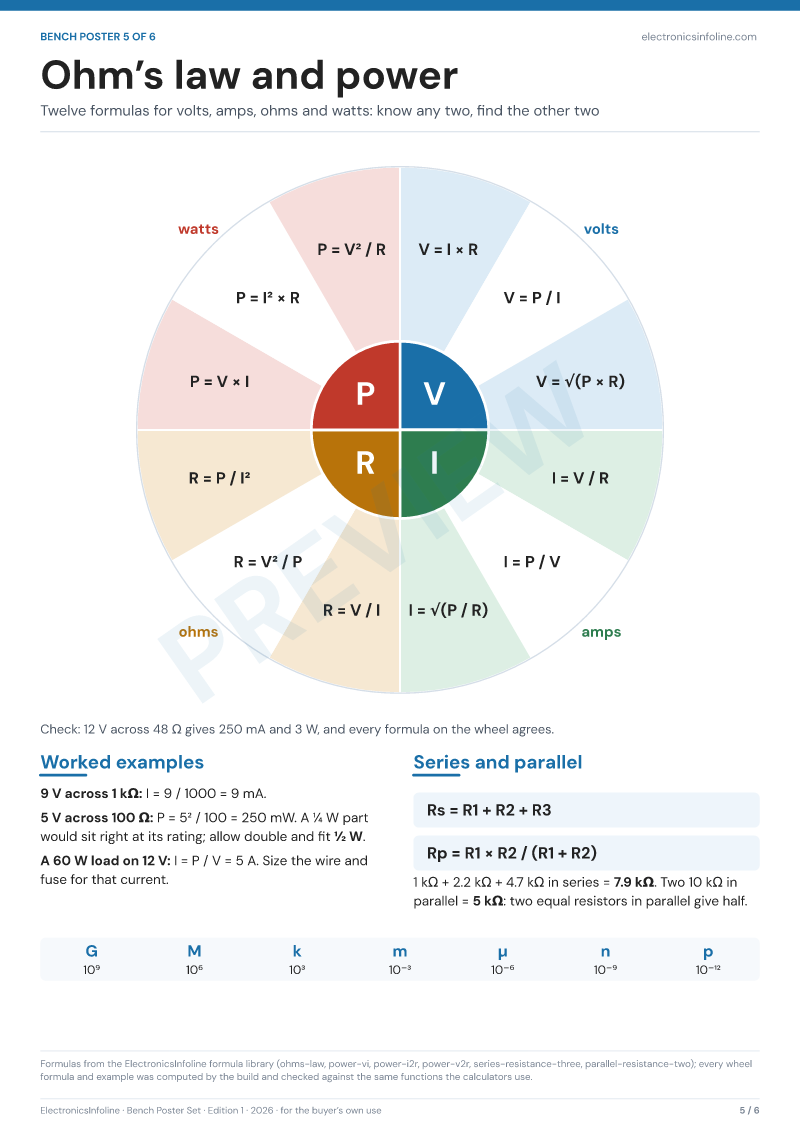

Ohm’s law and power wheel
All 12 formulas for volts, amps, ohms and watts on one wheel, with worked examples, series and parallel resistors and the SI prefixes.
Logic gates
NOT, AND, OR, NAND, NOR, XOR and XNOR: the ANSI and IEC symbols, the Boolean expression and the truth table for each.

Who it is for

Students, hobbyists, repair technicians and teachers who want the codes and pinouts on the wall where they work, readable from the chair.

Everything in the pack is also free on the site, spread across these pages. The pack puts it on paper in one place:

Tips and tricks

Print one A3 poster on an office printer before you order A2 at a print shop. It shows you how the size reads from where you sit.
Ask the print shop for “actual size” or 100 %. “Fit to page” shrinks the poster and changes the margins.
Laminate the colour code and pinout posters, or print them on matte paper. A laminated sheet wipes clean after a flux splash, and matte paper does not glare under a bench lamp.
Read colour bands under daylight-white light. Under a warm lamp, brown can look red and red can look orange.
Hang the pinout poster at eye level next to the breadboard, and check the part number on the body before you trust a pin order.
The colour code poster needs a colour printer. The other five read fine in greyscale.

What we would do

For a single bench, print the A3 files and pin up the colour code and the pinouts first; those are the two you will look at every day. Choose A2 for a classroom wall or if you sit more than a metre away. If you already own the Quick Reference Pack, the facts here are the same; what the posters add is the size.

Questions

What paper sizes are the posters?: Each poster comes in A3 (297 × 420 mm), A2 (420 × 594 mm) and US tabloid (11 × 17 in). The PDFs are vector files, so they print sharp at every size.
What do I download?: One ZIP file with 18 PDFs in three folders, one per paper size. Each PDF holds one poster on one page, so you can send a print shop only the posters you want.
Can I print them at home?: A3 needs a printer that takes A3 paper, and many office printers do. In the US, the tabloid files print on 11 × 17 paper. A2 is a print-shop job.
Is this information free on the site?: Yes. Every table and pinout is on our calculators and part pages. The posters put it all on the wall, large enough to read without getting up.
Can I print copies for a classroom or lab?: The set is for your own bench. For a classroom or lab, write to [email protected]; an institute licence is planned.

Price, tax and refunds

Rupee prices include GST, and you pay them through Razorpay. You pay dollar prices through PayPal. We never see your card or bank details. Because this is a digital download, the refund policy applies: if the file will not download or open, write to [email protected] within 7 days and we will fix it or send a replacement.
