    Home / Store

    Printable A4 PDF

    Electronics Quick Reference Pack

    Twelve A4 pages (a cover and eleven numbered pages) of the tables and pinouts you look up most often, laid out to print and pin above the bench. Every value comes from the same checked data as our calculators and part pages.

    Edition 1.2, 12 pages, A4 · A4 PDF, colour, prints well in greyscale

    $4.99

    Price in US dollars. One-time payment, no subscription.

    You pay on PayPal with your PayPal account or a card, then come straight back here for the download link.

    Digital download, for your own use. See the refund policy.

    • Instant download after payment.
    • The link works for 7 days and 5 downloads. Save the PDF somewhere safe.
    • Print at 100 % on A4. It reads fine in greyscale too.

    Preview

    • The cover of the Electronics Quick Reference Pack, Edition 1.2: the title, a resistor colour code card, SMD codes, a capacitor code, a TO-92 pinout and the 8051 pinout
    • Page 2: the resistor colour code table with a swatch for each of the 13 colours, and 4-band and 5-band reading guides

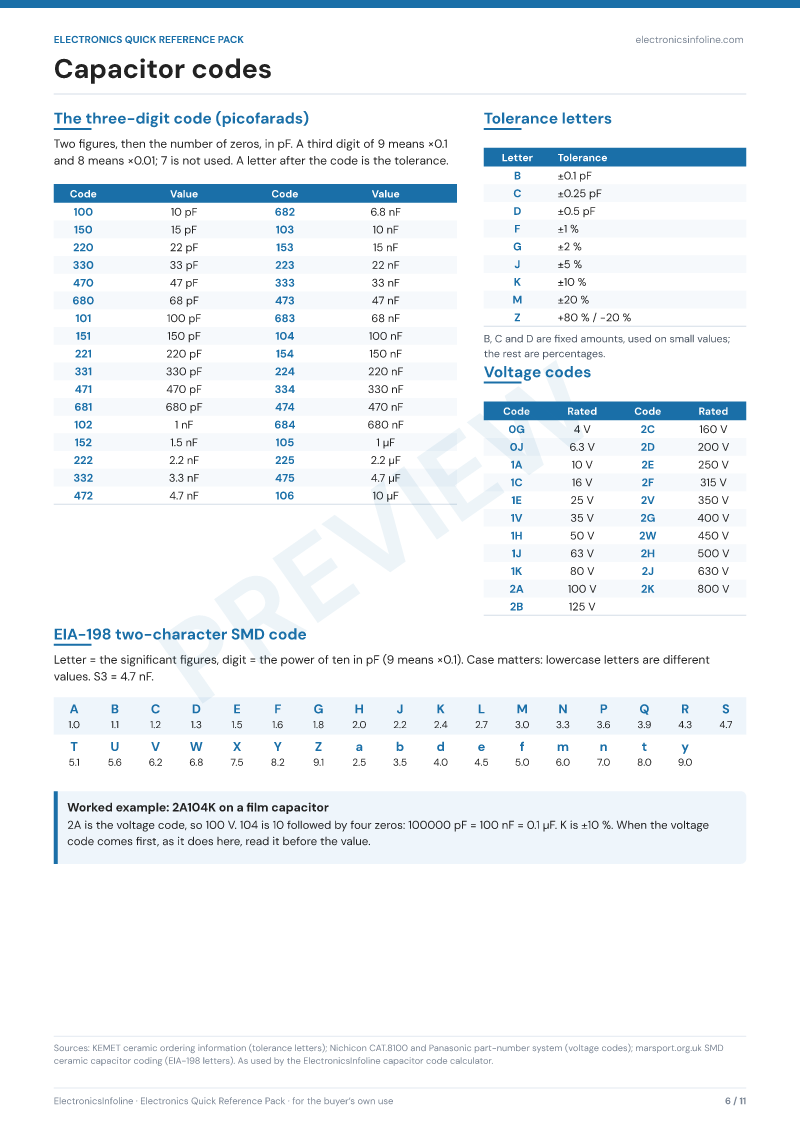

    • Page 6: capacitor codes, with common three-digit codes in pF, nF and µF, tolerance letters and voltage codes

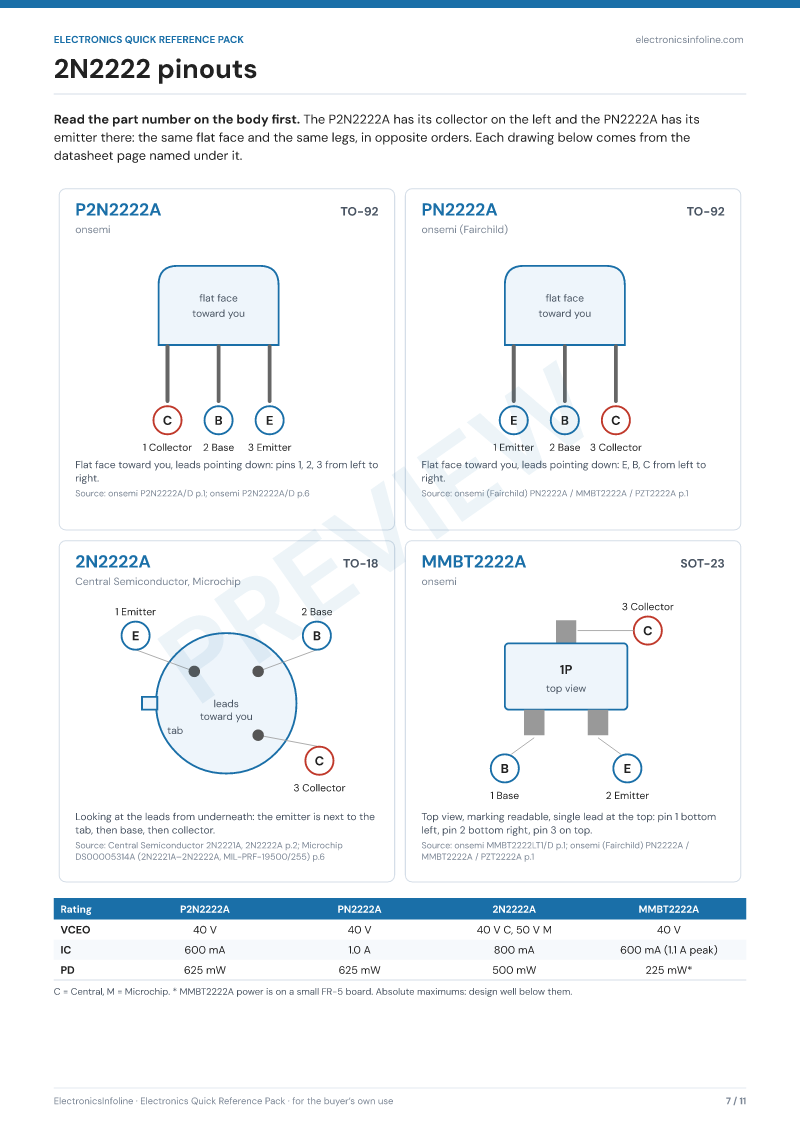

    • Page 7: 2N2222 pinouts for the P2N2222A, PN2222A, TO-18 2N2222A and SOT-23 MMBT2222A
    • Page 10: Ohm’s law, power and voltage divider formulas, each with a worked example

    The previews carry a "Preview" watermark. The PDF you download has none, and its text stays sharp at any zoom.

    What’s inside

    • Resistor colour code

      All 13 colours to IEC 60062 with digit, multiplier, tolerance and temperature coefficient, and how to read 4-band and 5-band parts.

    • E6, E12 and E24 values

      One table, lined up so you can see which values each series shares.

    • E96 values and EIA-96 codes

      All 96 values with their two-digit index, and the multiplier letters.

    • SMD resistor codes

      Three-digit, four-digit, R as the decimal point and zero-ohm jumpers, with decoded examples.

    • Capacitor codes

      The three-digit code with the common values in pF, nF and µF, tolerance letters, voltage codes and the EIA-198 letters.

    • Transistor pinouts

      P2N2222A, PN2222A, 2N2222A (TO-18), MMBT2222A, BC547 and 2N3904, each drawn from the maker’s datasheet page.

    • 8051 DIP-40 pinout

      All 40 pins with their second functions, as the AT89S52 datasheet prints them.

    • Formulas

      Ohm’s law, power, series and parallel resistors, the voltage divider, RC timing, the LED resistor and the LM317, each with a worked example.

    Who it is for

    Students, hobbyists and repair technicians who want the numbers on paper next to the soldering iron instead of on a phone screen.

    Everything in the pack is also free on the site, spread across these pages. The pack puts it on paper in one place:

    • Resistor colour code calculator
    • SMD resistor code calculator
    • Capacitor code calculator
    • 2N2222 pinout and substitutes
    • 8051 pin diagram

    Price, tax and refunds

    Rupee prices include GST, and you pay them through Razorpay. You pay dollar prices through PayPal. We never see your card or bank details. Because this is a digital download, the refund policy applies: if the file will not download or open, write to [email protected] within 7 days and we will fix it or send a replacement.
